Terraform Environment Setup

Databricks is a cloud-based tool built on Apache Spark used in machine learning, big data analytics, and data engineering to enable AI model deployment, fast data processing, and collaboration. Its scalable Delta Lake infrastructure supports its efficient, secure data management.

To manage Databricks infrastructure with Terraform, you have to install and configure some of the systems; the first step is installing Terraform and the Databricks provider. Download Terraform from the official website and ensure it is available in the system’s path, and then initialize a Terraform working directory by creating a new directory and running :

terraform init

Authentication in Databricks is configured using the credentials from cloud providers. A service principal is used to set up authentication for Azure:

provider "databricks" {
 host  = "https://<your-databricks-instance>"
 azure_client_id     = var.azure_client_id
 azure_client_secret = var.azure_client_secret
 azure_tenant_id     = var.azure_tenant_id
}

An Access key or service accounts will be required for AWS and GCP

Databricks Infrastructure with Terraform Setup

Terraform allows configuration using HCL (Hashicorp Configuration Language). and configurations are made in the primary configuration file, main.tf, declares a Databricks workspace:

resource "databricks_workspace" "example" {
 name          = "example-workspace"
 resource_group = "example-rg"
 location      = "East US"
}

Configuring clusters within a workspace requires some important setup, like versioning, autoscaling, and specific nodes:

resource "databricks_cluster" "example" {
 cluster_name            = "example-cluster"
 spark_version           = "12.0.x-scala2.12"
 node_type_id            = "Standard_D3_v2"
 autotermination_minutes = 20
 autoscale {
   min_workers = 2
   max_workers = 8
 }
}

Access Control and Permissions

Terraform will be able to control user roles and access control lists using the Databricks permission control user and group access

resource "databricks_group" "data_scientists" {
 display_name = "Data Scientists"
}

resource "databricks_user" "analyst" {
 user_name  = "analyst@example.com"
 groups     = [databricks_group.data_scientists.id]
}

Integrating Terraform with a cloud IAM system like Microsoft Entra Id ensures authentication and access policies are in line with enterprise governance best practices.

Deploying Databricks Jobs with Terraform

Databricks jobs are used to automate batch and streaming workloads; the databricks_job resources define the job execution parameters:

resource "databricks_job" "example_job" {
 name = "Example Job"
 new_cluster {
   spark_version = "12.0.x-scala2.12"
   node_type_id  = "Standard_D3_v2"
   num_workers   = 4
 }
 notebook_task {
   notebook_path = "/Shared/example_notebook"
 }
}

Scheduling jobs and dependencies are managed within Terraform, allowing seamless automation of recurring tasks.

Versioning with Terraform

Terraform uses a state file to track all deployed resources to ensure collaborations and prevent conflicts, so remote state storage must be configured.

terraform {
 backend "azurerm" {
   resource_group_name  = "terraform-state-rg"
   storage_account_name = "tfstateaccount"
   container_name       = "tfstate"
   key                  = "databricks.tfstate"
 }
}

This ensures changes made to infrastructure are managed safely using terraform plan and terraform apply, preventing unintended changes.

Automating Deployment with CI/CD

To ensure infrastructure with consistency, Terraform needs to integrate with CI/CD; a Github action pipeline can be used for automated deployments:

name: Terraform Deployment
on: [push]
jobs:
 deploy:
   runs-on: ubuntu-latest
   steps:
     - uses: actions/checkout@v3
     - name: Setup Terraform
       uses: hashicorp/setup-terraform@v1
     - name: Terraform Init
       run: terraform init
     - name: Terraform Apply
       run: terraform apply -auto-approve

This pipeline can also be configured in GitLab CI/CD or Azure DevOps for streamlined deployments.

Monitoring and Scaling Databricks infrastructure

Databricks environments require monitoring for performance and cost efficiency; Terraform can be used to configure monitoring solutions:

resource "databricks_instance_profile" "monitoring" {
 instance_profile_arn = "arn:aws:iam::123456789012:instance-profile/DatabricksMonitor"
}
Autoscaling is enabled on the clusters to optimize resource utilization without over-provisioning:
autoscale {
 min_workers = 4
 max_workers = 16
}

Errors and debugging Terraform Deployments

Some common Terraform errors include authentication failures and state mismatches. Provider authentication issues can be resolved by verifying permissions and credentials. State mismatches often require manual state adjustments:

terraform state rm databricks_cluster.example
terraform apply

Quota restrictions and API rate limits must be handled by adjusting Terraform configurations to include retries and back-off mechanisms.

Databricks Deployments Optimization.

More resources like Unity Catalog for data governance can be managed with Terraform:

resource "databricks_metastore" "unity" {
 name = "example-metastore"
}

MLflow tracking servers can also be set up to manage ML models and notebooks through Git integration, ensuring streamlined workflows.

This tutorial has shown how to automate Databricks infrastructure with Terraform, including infra provisioning, access control, job automation, CI/CD integration, and monitoring, but more optimizations like cost management, security best practices, and additional Databricks features can be included.

Pro tips:
1. Follow this guide to know how to manage secret scopes in databricks.

See more

The post Automate Databricks Infrastructure as Code with Terraform appeared first on AzureOps.

What is VACUUM in the Delta table?

VACUUM empties all files from the table directory that are not managed by Delta and data files that are no longer in the latest state of the transaction log for the table and are older than a retention threshold.

How to use Databricks VACUUM on Databricks Delta tables

database_names_filter = "20_silver_zendesk_eg"
dbs = spark.sql(f"SHOW DATABASES LIKE '{database_names_filter}'").select("databaseName").collect()
dbs = [(row.databaseName) for row in dbs]
for database_name in dbs:
print(f"Found database: {database_name}, performing actions on all its tables..")
tables = spark.sql(f"SHOW TABLES FROM {database_name}").select("tableName").collect()
tables = [(row.tableName) for row in tables]
for table_name in tables:
print(f"performing vaccum on {table_name}")
spark.sql(f"ALTER TABLE {database_name}.{table_name} SET TBLPROPERTIES ('delta.logRetentionDuration'='interval 2 days', 'delta.deletedFileRetentionDuration'='interval 1 days')")
spark.sql(f"VACUUM {database_name}.{table_name}")
spark.sql(f"ANALYZE TABLE {database_name}.{table_name} COMPUTE STATISTICS")

If you run VACUUM on a Delta table, you lose the ability to time-travel back to a version older than the specified data retention period.

See more

The post Databricks VACUUM Command appeared first on AzureOps.

What is Data Streaming?

Data Streaming is a method in which input is produced continuously to perform transformations. The output is also retrieved as a constant data stream, also called setting data in motion.

What is Kafka Stream?

Kafka Streams is a library for building streaming applications that transform input Kafka topics into output Kafka topics. Kafka Streams (Kstreams) internally uses producer and consumer libraries. It is coupled with Kafka, and the API allows you to leverage the abilities of Kafka by achieving Data Parallelism, Fault-tolerance, low latency, and much more.

What is Spark Stream?

Spark stream is an extension of the core Spark API that provides scalable, high-throughput, fault-tolerant stream processing of live data streams. It allows real-time data processing from various sources like Kafka topics, Flume, Amazon Kinesis, etc. The processed data can be sink to file systems, databases, live dashboards, etc.

This article describes the difference between streaming part of Spark vs Kafka.

Key difference between Kafka streaming and Spark streaming

Summary

Kafka Streams and Spark Streaming are potent tools for real-time data processing, but they have different strengths and weaknesses depending on the specific use case and requirements. All the above differences are based on my experiences and research and may not be accurate.

See more

The post Kafka Streaming vs Spark Streaming appeared first on AzureOps.

Learning Pathway

Before you begin
1. You should understand Databricks, data engineering concepts, python, and SQL.
2. Databricks offers three certifications in the Data Engineering space. To attempt Data Engineer Associate Certification, learning Databricks Lakehouse Fundamentals and passing Databricks Lakehouse Fundamentals Accreditation is advisable.
3. Databricks data engineer exam and certification-related details on the Databricks website.
4. Databricks offers free exam vouchers to those who attend a three days Data Lake seminar organized by Databricks. Please watch out for the next event from here.

Prepare for the Exam

1. Sign in to the Databricks Partner Academy site for a self-paced video or paid instructor-led course using your office mail id.
2. Choose this course for this Databricks Certified Data Engineer Associate certification exam.

Study these items in detail:

• Databricks Lakehouse Platform
  What is Lakehouse
• ELT with Spark SQL and Python
  Learn to perform Extract Load and Transform on data using Spark SQL and Python in Databricks.
  Learn ELT with spark and python
• Incremental Data Processing
  Structured Streaming
  Auto Loader
  Delta Live Tables
• Production Pipelines
• Data Governance

Databricks Certified Data Engineer Associate Practice Exam

To familiarize yourself with Databricks data engineer associate exam questions, please attempt the Practice Exam prepared by Databricks to glimpse actual exam content standards and difficulty levels.

Once you are done with it and understand your preparation, I recommend practicing tests by Akhil V and Certification Champs on Udemy.

Book Your Exam Slot

If your practice test exam score is at least 90%, you can book your actual slot here.

Pro tips:
1. Community Edition of Databricks doesn’t cover all the topics for this exam. You may need to use paid Databricks with Azure or AWS. The smallest possible capacity might suffice learning requirements.
2. If you’re aiming for Developing Solutions for Microsoft Azure certification, take a look at these helpful tips.

See more

The post Databricks Certified Data Engineer Associate appeared first on AzureOps.

Pre-requisites:
To mount a location, you would need:
1. Databricks service in Azure, GCP, or AWS cloud.
2. A Databricks cluster.
3. Azure subscription with Azure Key Vault service created.

What are Secret scopes in Databricks?

When working with various applications, the Databricks platform comes in handy. To establish connections, credentials or secrets are necessary, which can be securely stored in Databricks or Azure Key Vault. Secret scopes are responsible for managing these secrets in either Azure Key Vault or Databricks.y Vault or Databricks.y Vault or Databricks.

Databricks supports two secret scopes :
1. Azure Key Vault backed scopes: to manage secrets stored in the Azure Key Vault.
2. Databricks-backed scopes: to manage secrets stored in Databricks.

Secret Scopes vs Key Vault-Backed Scopes

This article will focus on how to manage Azure Key Vault-backed secret scopes.

Create an Azure Key Vault-backed scope

Follow the below steps to create an Azure Key Vault-backed secret scope.

1. Open https://<databricks-instance>#secrets/createScope URL

2. Provide the below details:

Scope Name: <Name of the scope>

Manage Principal: Using this option, you can specify what all users can manage the secret scope. You can either select “All Users” or “Create’.

DNS Name and Resource ID: Both these properties can be found in Azure Key Vault service properties.

3. Click on Create. This will create secret scope.

Access a secret from the Azure Key Vault in Databricks

We can access secrets in Databricks using the below command.

password =  dbutils.secrets.get(scope = <name_of_scope>, key = "<name_of_secret>)

Delete a secret scope from Databricks

Unfortunately, it is not possible to delete a secret scope using GUI. The alternative option is to use either Databricks CLI or Databricks Rest API for deletion.

FAQ

Pro tips:
1. Databricks provides a free community version where you can learn and explore Databricks. You can signup here.
2. By managing secret scopes in Databricks, you can keep your sensitive data secure while allowing authorized users and applications to access it when needed.
3. If you’re aiming to obtain the Databricks certified Data Engineer Associate certification, take a look at these helpful tips.
4. Learn how to mount and unmount data lake gen2 storage in Databricks.
5. Learn how to automate Databricks IAAC using Terraform.

The post Databricks Secret Scopes – How to Create, Manage, and Use Securely appeared first on AzureOps.

Pre-requisites:
To mount a location, you would need the following:
1. Databricks service in Azure, GCP, or AWS cloud.
2. A Databricks cluster.
3. A basic understanding of Databricks and how to create notebooks.

What is Mounting in Databricks?

Mounting object storage to DBFS allows easy access to object storage as if they were on the local file system. Once a location e.g., blob storage or Amazon S3 bucket is mounted, we can use the same mount location to access the external drive.

Generally, we use dbutils.fs.mount() command to mount a location in Databricks.

How to mount a data lake in Databricks?

Let us now see how to mount Azure data lake gen2 in Databricks.

First thing first, let’s create blob storage and container. Blob storage should look like in the below image.

New Container should look like in the below image.

To mount an ADLS gen2 we will need the below details to connect to a location.

ContainerName = "yourcontainerName"
azure_blobstorage_name = "blobstoragename"
mountpointname = "/mnt/azureops"
secret_key ="xxxxxxxxxxx"

Once we have this information, we can use below code snippet to connect the data lake with Databricks.

dbutils.fs.mount(source = f"wasbs://{ContainerName}@{azure_blobstorage_name}.blob.core.windows.net",mount_point = Mountpointname ,extra_configs = {"fs.azure.account.key."+azure_blobstorage_name+".blob.core.windows.net":secret_key})

How to check all the mount points in Databricks?

dbutils.fs.mounts()

How to unmount a location?

dbutils.fs.unmount(mount_point)

Let’s use all the above commands in action.

The objective is to add a mount point if it does not exist.

if all(mount.mountPoint != archival_mount_name for mount in dbutils.fs.mounts()):
     dbutils.fs.mount(source = f"wasbs://{ContainerName}@{azure_blobstorage_name}.blob.core.windows.net",mount_point = Mountpointname ,extra_configs = {"fs.azure.account.key."+azure_blobstorage_name+".blob.core.windows.net":archival_secret_key})

Pro tips:
1. Instead of using a storage account key, we can also mount a location using a SAS token URL or service principal
2. Databricks provide a free community version where you can learn and explore Databricks. You can signup here.
3. If you’re aiming to obtain the Databricks certified Data Engineer Associate certification, take a look at these helpful tips.

Notebook Reference

See more

The post Mount and Unmount Data Lake in Databricks appeared first on AzureOps.

What is Databricks notebook and execution context?

Notebooks in Databricks are used to write spark code to process and transform data. Notebooks support Python, Scala, SQL, and R languages.

Whenever we execute a notebook in Databricks, it attaches a cluster (computation resource) to it and creates an execution context.

Pre-requisites:
If you want to run Databricks notebook inside another notebook, you would need the following:
1. Databricks service in Azure, GCP, or AWS cloud.
2. A Databricks cluster.
3. A basic understanding of Databricks and how to create notebooks.

Methods to call a notebook from another notebook in Databricks

There are two methods to run a Databricks notebook inside another Databricks notebook.

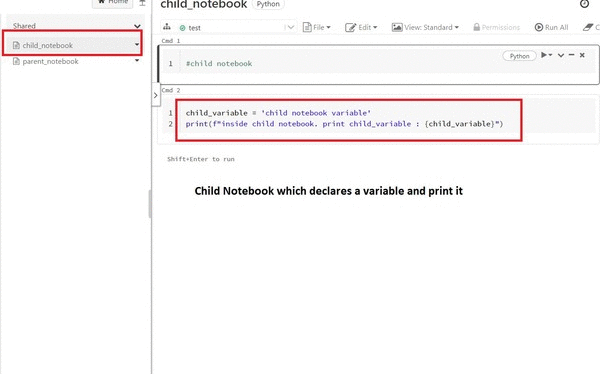

1. Using the %run command

%run command invokes the notebook in the same notebook context, meaning any variable or function declared in the parent notebook can be used in the child notebook.

The sample command would look like the one below.

%run [notebook path] $paramter1="Value1" $paramterN="valueN"

This method is suitable for defining a notebook with all the constant variables or a centralized shared function library. And you want to refer to them in the calling or child notebook.

What if we need to execute the child’s notebook in a different notebook context? The following method describes how to achieve this.

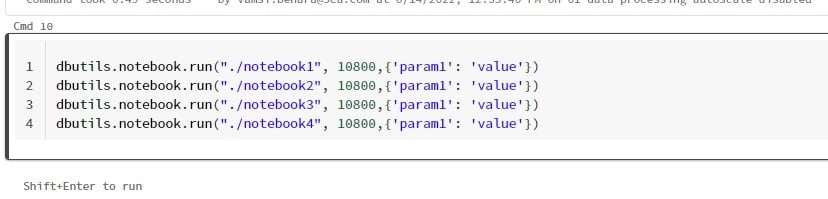

2. Using the dbutils.notebook.run() function

This function will run the notebook in a new notebook context.

The syntax of dbutils.notebook function is:

dbutils.notebook.run(notebookpath, timeout_in_seconds, parameters)

Here,

Notebook_path -> path of the target notebook.
Timeout_in_seconds – > the notebook will throw an exception if it is not completed in the specified time.
parameters – > Used to send parameters to child notebook. Parameters should be specified in JSON format.
e.g. {‘paramter1’: ‘value1’, ‘paramter2’: ‘value2’}

We can call the N numbers of the notebook by calling this function in the parent notebook

This will run all the notebooks sequentially.

Run Databricks notebooks in parallel

You can use the python library to run multiple Databricks notebooks in parallel. This library helps create multiple threads that run notebooks in parallel.

Import the library as follows:

from concurrent.futures import ThreadPoolExecutor

You can read more about ThreadPoolExecutor here. And here is a sample code that code explorer already wrote for running the notebook in parallel.

Attaching the same notebook used in this blog:

Pro tips:
1. We can use Azure data factory for running notebooks in parallel. Refer to this post to learn more.
2. Jobs created using the dbutils.notebook API must complete in within 30 days.
3. We can only pass string parameters to the child notebook with the methods described in this article, and objects are not allowed.
4. Databricks provide a free community version where you can learn and explore Databricks. You can sign up here.

See more

The post Call a notebook from another notebook in Databricks appeared first on AzureOps.
