SSIS Catalog Migration Wizard includes a command-line utility for automating catalog migrations and inspection tasks. Scripts can be integrated with Windows Task Scheduler or CI/CD tools.

Executable #

The command-line utility is SSISCataloger.Pro.exe. Add its folder to the Windows Path environment variable or call the executable using its full path.

Command-Line Parameters #

Parameter Requirement Description
st Required Source type: 0 = SQL Server, 1 = Azure SSIS IR, 2 = SCMW file.
ssn When st=0 Source SQL Server instance name.
su, sp When st=1 Administrator username and password for the Azure SQL Server containing the SSIS IR.
tt Required Target type: 0 = SQL Server, 1 = Azure SSIS IR, 2 = SCMW file.
tsn When tt=0 Target SQL Server instance name.
tu, tp When tt=1 Administrator username and password for the Azure SQL Server containing the target SSIS IR.
scmwfp When source or target is SCMW Full path to the SCMW file.
opr Optional Operation: migrate or inspect. Default is migrate; documented as preview in the source documentation.
items Optional JSON selection of catalog folders, projects, and environments. If omitted, the full source catalog is selected.
mt Optional Migration type: copy (default) or move. Move deletes selected items from the source.
fm Optional JSON mapping of source folder names to target folder names.
oev Optional true or false. When true, target environment variables are recreated based on source variables. Default is false.
lfd Optional Directory for execution logs and errors. If omitted, the application uses its default log location.

Automate SSIS Deployment #

Examples #

Export an Entire Catalog to an SCMW File #

"C:\SSIS Cataloger Pro\SSIS.Cataloger.Pro.exe" /st:0 /ssn:. /tt:2 /scmwfp:"D:\SCMW exports\Export.scmw"

Import Selected Items and Map a Folder #

SSIS.Cataloger.Pro.exe /st:2 /scmwfp:"D:\SCMW exports\Export.scmw" /tt:0 /tsn:TargetServer /items:"[{"FolderName":"Azure test","Projects":[],"Environments":["env1"]},{"FolderName":"Sales","Projects":["sales-stg2"],"Environments":[]}]" /fm:"{"Azure test":"Azure prod"}"

Migrate Selected Items to Another SQL Server #

SSIS.Cataloger.Pro.exe /st:0 /ssn:SourceServer /tt:0 /tsn:TargetServer /items:"[{"FolderName":"Azure test","Projects":["testUC"],"Environments":["env1"]}]" /lfd:"D:\SCMW exports"

Inspect a Catalog #

"C:\SSIS Cataloger Pro\SSIS.Cataloger.Pro.exe" /st:0 /ssn:SourceServer /opr:inspect

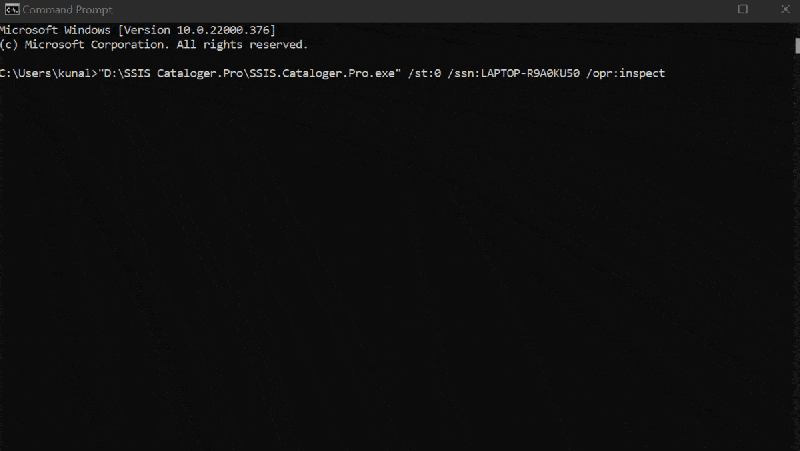

Command prompt showing SSIS Catalog Migration Wizard catalog inspection command

Exit Codes #

  • 0 — Success.
  • -1 — Failure.

Operational Notes #

  • Test automation against a non-production catalog before scheduling production runs.
  • Review logs and exit codes after each execution.
  • Use move only when source deletion is intended.
  • Protect command-line arguments, log files, and SCMW files if they contain credentials or sensitive values.

Automation examples should be reviewed against the installed product version before production use.
