Deploy Azure SQL External Tables Using an Azure DevOps CI/CD Pipeline

In an earlier post, we walked through setting up a full Azure DevOps CI/CD pipeline to deploy a DACPAC to Azure SQL Database. We covered how to set up cross-database queries in Azure SQL using external tables, also known as Elastic Query. Both are common asks, but a question that comes up right after is: how do you deploy external tables and their supporting objects (master key, credential, external data source) through the same pipeline, without hardcoding server names, database names, and passwords into your .sqlproj?

This post bridges the two. We’ll take the manual external table setup and turn it into SQLCMD-variable-driven objects in the database project, source their values from Azure Key Vault, and pass them into the SqlAzureDacpacDeployment task so the same DACPAC can be deployed safely across dev, test, and prod — each pointing to a different source database.

Prerequisites:
1. A working Azure SQL CI/CD pipeline, as covered in this post, with Key Vault access already wired into the pipeline.
2. A database project containing (or about to contain) external table objects, as covered in cross database query in Azure SQL database post.
3. Secrets for the source database connection already created in Azure Key Vault, see this article if you haven’t set this up yet.

Why Not Hardcode External Data Source Values?

The CREATE EXTERNAL DATA SOURCE and CREATE DATABASE SCOPED CREDENTIAL statements need a server name, database name, username, and password. If you hardcode these into the .sql files in your database project, you run into two problems the moment you promote the DACPAC beyond one environment:

• Different source servers per environment — your dev database usually points to a dev source database, not the prod one, so the location and database name in the script need to change per stage.
• Secrets in source control — a credential password checked into a .sql file in Azure Repos defeats the purpose of using Key Vault everywhere else in the pipeline.

The fix is the same pattern SqlPackage already uses for connection strings: SQLCMD variables in the project, resolved at publish time from pipeline variables that are themselves sourced from Key Vault or a variable group.

Step 1: Parameterize the External Table Objects in the Database Project

In your database project, replace the hardcoded values in the master key, credential, and external data source scripts with SQLCMD variables:

CREATE MASTER KEY ENCRYPTION BY PASSWORD ='$(masterkey)';

CREATE DATABASE SCOPED CREDENTIAL [ExtTableQueryCred]
WITH
    IDENTITY = '$(externalDataSourceScopedCredUserName)',
    SECRET = '$(externalDataSourceScopedCredPassword)';

CREATE EXTERNAL DATA SOURCE [LinkedAzureSQLDB]
    WITH (
    TYPE = RDBMS,
    LOCATION = '$(ExternalDataSourceLocation)',
    DATABASE_NAME = '$(ExternalDataSourceDBName)',
    CREDENTIAL = [ExtTableQueryCred]
    );

When Visual Studio sees a $(variableName) token in a script, it registers it as a SQLCMD variable automatically. You can confirm this under the project’s Properties > SQLCMD Variables tab, each variable gets a default value slot, which is handy for local publishes but should never hold a real password.

Note: Name the credential and data source objects deterministically (as shown above), not with environment-specific suffixes. The object name stays constant across dev/test/prod — only the SQLCMD variable values change per environment.

Once the credential and data source exist, the external table itself doesn’t need any environment-specific values, it just references the data source by name, so it deploys unchanged across every stage:

CREATE EXTERNAL TABLE [dbo].[external_table]
(
    -- column definitions matching the source table
)
WITH (
    DATA_SOURCE = [LinkedAzureSQLDB],
    SCHEMA_NAME = 'dbo',
    OBJECT_NAME = 'external_table'
);

Step 2: Store the Variable Values in Key Vault / Variable Groups

Following the pattern from the CI/CD pipeline post, add each of these as a secret in your environment-specific Key Vault (or as a secret variable group linked to Key Vault):

Add these secret names to the SecretsFilter of the AzureKeyVault@1 task for each stage, right alongside the azuresqldb-dbconnstring secret you’re already pulling in.

Step 3: Pass the Variables into SqlPackage via AdditionalArguments

SqlPackage exposes SQLCMD variables through the /v: switch. Extend the AdditionalArguments property on the SqlAzureDacpacDeployment@1 task to pass each variable through from the pipeline:

AdditionalArguments: '/p:GenerateSmartDefaults=True /p:DropObjectsNotInSource=false /p:BlockOnPossibleDataLoss=true /p:IgnorePermissions=true /p:ExcludeObjectTypes="Users;Permissions" /v:ExternalDataSourceLocation=$(externalDataSourceLocation) /v:ExternalDataSourceDBName=$(externalDataSourceDBName) /v:externalDataSourceScopedCredUserName=$(externalDataSourceScopedCredUserName) /v:externalDataSourceScopedCredPassword=$(externalDataSourceScopedCredPassword)'

A couple of things worth calling out here:

• Every /v: entry maps a SQLCMD variable name (left of the =) to a pipeline variable (right of the =, in $(...) form). The pipeline variable, in turn, resolves from the Key Vault secret you pulled in with AzureKeyVault@1.
• /p:GenerateSmartDefaults=True tells SqlPackage to auto-generate values for any NOT NULL columns it can’t otherwise resolve during publish — useful the first time you’re adding columns to existing tables alongside the external table changes, but exercise it with the same caution as the DropObjectsNotInSource flag we called out in the CI/CD pipeline post.
• If your database doesn’t have a master key yet, keep the /v:masterkey=$(masterkey) argument in the list too. Once the master key exists, CREATE MASTER KEY is safe to leave in the script — SqlPackage/SSDT will skip re-running it, but it’s still good practice to guard it in code review.

Step 4: Wire It into the Environment Stage

Here’s how this slots into the stage-per-environment pipeline from the earlier post — only the AzureKeyVault@1 and SqlAzureDacpacDeployment@1 steps change:

- stage: dev
  displayName: Dev Deploy Stage
  dependsOn: build
  condition: and(succeeded(), ne(variables['Build.Reason'], 'PullRequest'))
  jobs:
  - deployment: Deploy
    displayName: Deploy Dev
    pool:
      vmImage: $(vmImageName)
    environment: dev
    strategy:
      runOnce:
        deploy:
          steps:
          - task: AzureKeyVault@1
            inputs:
              AzureSubscription: 'dev-service-connection-name'
              KeyVaultName: 'dev-keyva'
              SecretsFilter: 'azuresqldb-dbconnstring, externalDataSourceLocation, externalDataSourceDBName, externalDataSourceScopedCredUserName, externalDataSourceScopedCredPassword, masterkey'
              RunAsPreJob: true

          - task: SqlAzureDacpacDeployment@1
            inputs:
              AzureSubscription: 'dev-service-connection-name'
              AuthenticationType: 'connectionString'
              ConnectionString: '$(azuresqldb-dbconnstring)'
              DeployType: 'DacpacTask'
              DeploymentAction: 'Publish'
              DacpacFile: '$(Pipeline.Workspace)/drop/s/AzureOps.Sql/bin/Release/AzureOps.Sql.dacpac'
              AdditionalArguments: '/p:GenerateSmartDefaults=True /p:DropObjectsNotInSource=false /p:BlockOnPossibleDataLoss=true /p:IgnorePermissions=true /p:ExcludeObjectTypes="Users;Permissions" /v:ExternalDataSourceLocation=$(externalDataSourceLocation) /v:ExternalDataSourceDBName=$(externalDataSourceDBName) /v:externalDataSourceScopedCredUserName=$(externalDataSourceScopedCredUserName) /v:externalDataSourceScopedCredPassword=$(externalDataSourceScopedCredPassword) /v:masterkey=$(masterkey)'
              IpDetectionMethod: 'AutoDetect'

Repeat the same pattern for test and prod, pointing KeyVaultName and the secret values at each environment’s own source database, this is exactly why the external data source location and database name are variables rather than constants in the script.

Step 5: Verify the Deployment

Run the pipeline and confirm two things:

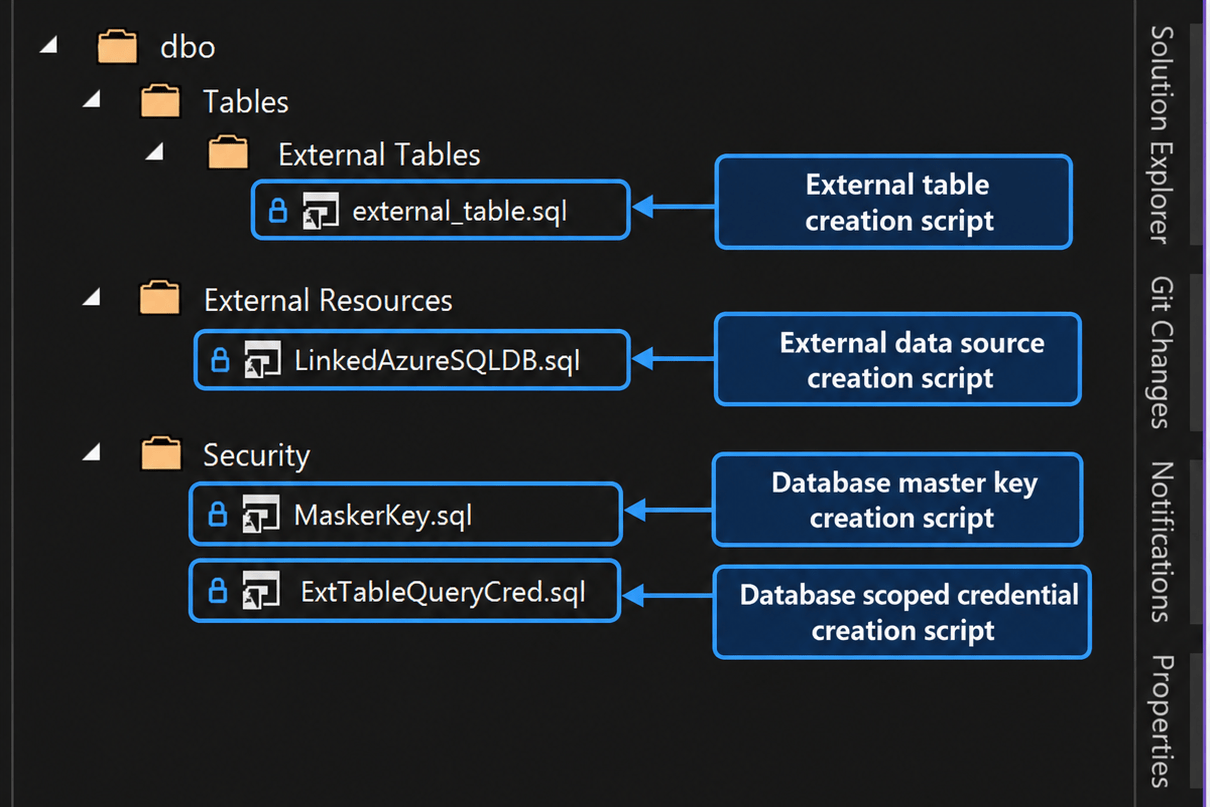

1. In Solution Explorer, after a successful build, the dimtbl > Tables > External Tables node, the External Resources node, and the Security node should all show the objects you parameterized — this is what confirms SSDT picked up the SQLCMD variables correctly at build time.
2. In the target database, query the catalog views to confirm the objects landed with the right values for that environment:

SELECT * FROM sys.external_data_sources;
SELECT * FROM sys.database_scoped_credentials;
SELECT * FROM sys.external_tables;

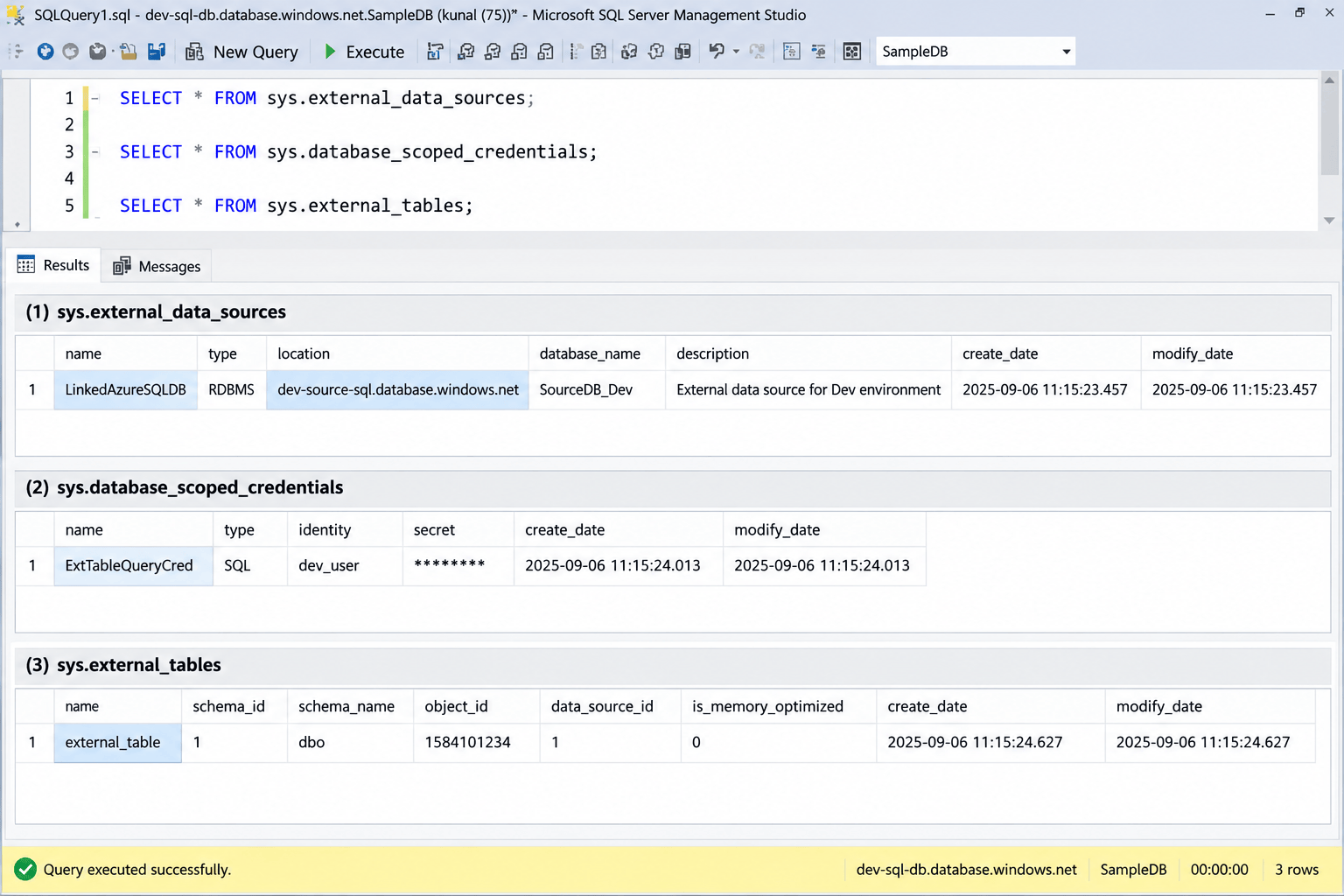

(Screenshot suggestion: SSMS output of the above three queries against the dev database, showing the data source location resolved to the dev source server.)

Pro tips:
1. Keep credential names environment-agnostic. Only the SQLCMD variable values should differ between dev/test/prod — renaming the credential or data source object per environment forces you to also edit the external table’s DATA_SOURCE reference per environment, which defeats the point of parameterizing.
2. Scope the pipeline identity, not just the SQL user. The service connection used to run SqlAzureDacpacDeployment@1 only needs deployment rights on the target database — it never touches the source database directly. Access to the source data flows entirely through the scoped credential, so keep ext_table_user‘s permissions on the source limited to SELECT on the specific tables it needs, as covered in the cross-database query post.
3. Mask the credential password variable. Mark it as a secret variable (or let it come through as a Key Vault secret, which is masked by default) so it never shows up in pipeline logs even if AdditionalArguments gets echoed during a failed run.
4. Rotating the source password? Update the Key Vault secret and re-run the pipeline — CREATE DATABASE SCOPED CREDENTIAL will be republished with ALTER semantics by SqlPackage, so you don’t need a separate rotation script.
5. Watch DropObjectsNotInSource. If you flip this to true for cleanup, make sure your external tables are actually present in the DACPAC’s source — a scoped credential or external table missing from the project because it was created manually will get silently dropped on the next deploy.

Wrapping Up

With the master key, scoped credential, and external data source parameterized as SQLCMD variables — and those values sourced from Key Vault the same way your connection string already is — external table deployment becomes just another part of the same CI/CD pipeline you already trust for the rest of your schema. No more running CREATE EXTERNAL DATA SOURCE by hand in SSMS per environment, and no credentials sitting in a .sql file in source control.

If you haven’t set up the base pipeline yet, start with Implement Azure SQL Database Deployment CI/CD Pipeline, and if you need a refresher on the external table / Elastic Query concepts themselves, revisit Cross Database Query in Azure SQL Database.
